- Basic parameters

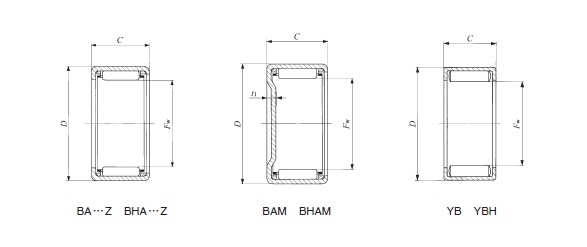

- Stamping needle roller bearing 7
- Series
- BAM 1614
- Model
- Main dimensions
- 25.400(1)
- Fw
- 31.750（1.25)
- D
- 22.22( .875)
- C
- 2.8
- t1/max
- Weight
- 33.5
- Weight/g
- Standard mounting sizemm
- 25.400
- Shaft diameter/Max
- 25.387
- Shaft diameter/Min
- 31.764
- Shaft hole diameter J7/Max
- 31.739
- Shaft hole diameter J7/Min
- Other parameters
- 16900
- Basic dynamic load rating C/N
- 30400
- Rated static load CO/N
- 15 000
- Allowable speed speed( 1)/rpm
- IRB 1214
- Collocation Inner ring
