Model: NACHI 54306 - Bidirectional thrust ball bearing (Sphericalbackface)>

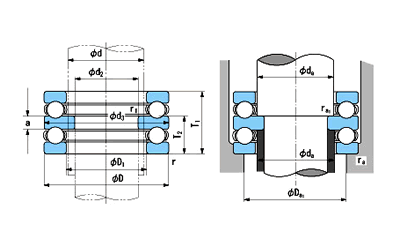

Bearing Size
d = 30d2 = 25
D = 60
T5 = 41.2
T6 = 25.1
d3(max) = 60
D1(min)= 32
a = 9
A1 = 19.5
R = 50
da(min) = 30
Da2(max) = 45
ra1(max) = 0.3
Mass = 0.495
Basic load rating: 42500
Rated static load: 78500
Rated static load: 78500
Limit speed（Grease lubrication）: 2800
Limit speed（Oil lubrication） 4200
