Model: NACHI 7309C - Single row angular contact ball bearings>

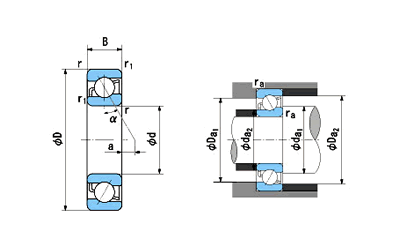

Bearing Size
d = 45D = 100
B = 25
a = -4.1
da1(min) = 54
da2(min) = 54
Da1(max) = 91
Da2(max) = 94.6
ra(max) = 1.5
ra1(max) = 1
Mass = 0.875
Basic load rating: 63500
Rated static load: 43500
Limit speed（Grease lubrication）: 11000
Limit speed（Oil lubrication）: 15000
