Model: NACHI 5211AN - With a snap ring groove double row angular contact ball bearings>

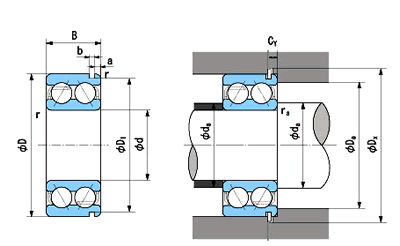

Bearing Size
d = 55
D = 100
B = 33.3
D1(max) = 96.8
a(max) = 3.28
b(min) = 2.7
D2(max) = 106.5
f(min) = 2.46
da(min) = 64
Da(max) = 91
ra(max) = 1.5
Cy(max) = 5.4
Mass = 0.96
Basic load rating: 63500
Basic load rating: 63500
Rated static load: 53000
Limit speed（Grease lubrication）: 4000
Limit speed（Oil lubrication）: 5500
