Model: NACHI 29326EX - Spherical roller thrust bearing>

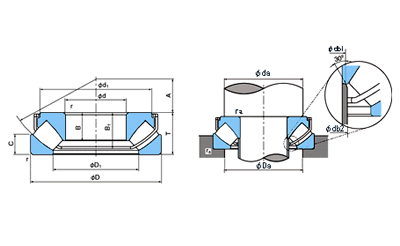

Bearing Size
d = 130D = 225
T = 58
r = 2.1
d1= 197.4
D1 = 165.8
B = 36.8
B1 = 52.7
C = 28
A = 76
da(min) = 170
Da(max) = 195
ra(max) = 2
db1(max) = 136
db2(max) = 138
Mass = 8.82
Mass = 8.82
Basic load rating: 770000
Rated static load: 2440000
Limit speed（Grease lubrication）: 1000
Limit speed（Oil lubrication） 1800
