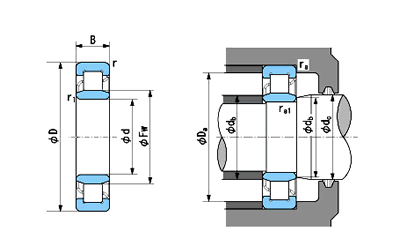

Model: NACHI NU2316 - Cylindrical roller bearing series (NU)>
Bearing Size
d = 80D = 170
B = 58
Fw = 103
db(min) = 92
db(max) = -
dc(max) = 105
Da(max) = 158
ra(max) = 2
ra1(max) = 2
Mass = 5.83
Basic load rating: 274000
Rated static load: 330000
Limit speed（Grease lubrication）: 3200
Limit speed（Oil lubrication） 3800
