- Basic Parameters
- F 683AZZ
- model
- With flangeDeep Groove Ball Bearing1
- type

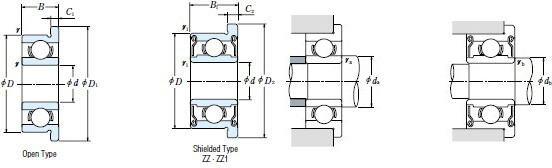

- Overall dimensions
- 3
- d
- 7
- D
- 08.1
- D1Flange outside diameter
- 08.1
- D2Flange outside diameter with cover
- 2.0
- BThickness
- 3.0
- B1 Thickness with cover
- 0.5
- C1 Flange thickness
- 0.8
- C2 Flange thickness with cover
- 0.10
- r (1) Chamfer
- 0.10
- r1(1)Chamfer with cover
- rated load
- 390
- Cr
- 130
- Cor
- 40
- Cr
- 13
- Cor
- Maximum speed
- 63 000
- "Open-typeZ·ZZDust cover"
- 75 000
- Open type z dust cover
- Bearing designation
- F 683A
- Open-type
- F 683AZZ
- Shielded dust cover type
- — —
- Sealed Seal Ring Type
- installation dimensions
- 3.8
- da Min
- 4.0
- db Max
- 0.10
- ra Max
- 0.10
- rb Max
- Mass weight(kg)
- 0.37
- Open-type
- 0.53
- Shielded dust cover
