- Basic parameters
- Non-standard deep groove ball bearings
- Series

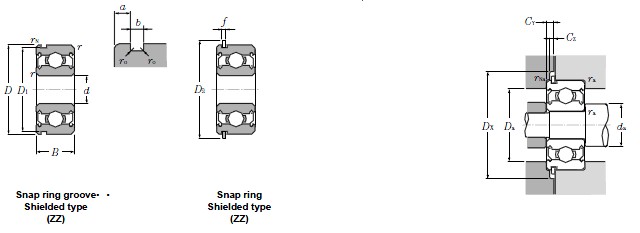

- SC559ZZNR
- Model
- Main Size(mm)
- 5
- d
- 13
- D
- 4
- B
- 0.2
- r smin 1
- 0.1
- r Namin 1
- Rated base load
- 1,080
- Dynamic load Cr/kN
- 430
- Static load Cor/kN
- 110
- Dynamic load Cr/kgf
- 44
- Static load Cor/kgf
- Allowable speed(rpm) 1
- 40,000
- Grease lubrication
- 47,000
- Oil lubrication
- Bearing number
- SC559ZZN
- with snap ring groove shielded type
- ZZNR
- with snap ring shielded type
- Snap ring groove dimensions(mm)
- 12.15
- D1 maximum
- 0.88
- a maximum
- 0.55
- b minmum
- 0.2
- r 0maximum
- snap ring dimensions(mm)
- 15.2
- D2 maximum
- 0.55
- f maximum
- 6.6
- da minmum
- 6.9
- da maximum
- Installation relationship size(mm)
- 11.4
- Da maximum
- 15.9
- Dx (about)
- 1.2
- C Ymaximum
- 0.6
- C Zminmum
- 0.2
- r as maximun
- 0.1
- r Nas maximun
- Weight(kg)(about)
- 0.002
- with snap ring
