size
| d | 40 | mm | |
| D | 110 | mm | |
| B | 27 | mm | |
| d1 | ≈ | 62.84 | mm |
| D1 | ≈ | 86.95 | mm |
| D3 | 106.81 | mm | |
| b | 2.7 | mm | |
| C | 3.28 | mm | |
| r0 | max. | 0.6 | mm |
| r1,2 | min. | 2 | mm |

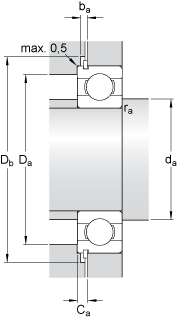

Size shoulder size
| da | min. | 53 | mm |
| Da | max. | 97 | mm |
| Db | min. | 118 | mm |
| ba | min. | 3 | mm |
| Ca | max. | 5.74 | mm |
| ra | max. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 63.7 | kN | |
| Basic rated static load | C0 | 36.5 | kN | |
| Fatigue load limit | Pu | 1.53 | kN | |
| Reference speed | 14000 | r/min | ||
| Maximum speed | 9000 | r/min | ||
| coefficient | kr | 0.035 | ||
| coefficient | f0 | 12 |
weight
| Bearing weight | 1.26 | kg |
