size
| d | 30 | mm | |
| D | 62 | mm | |
| B | 16 | mm | |
| d1 | ≈ | 40.36 | mm |
| D2 | ≈ | 54.06 | mm |
| D3 | 59.61 | mm | |
| D4 | 67.7 | mm | |
| b | 1.9 | mm | |
| C | 3.28 | mm | |
| f | 1.7 | mm | |
| r0 | max. | 0.6 | mm |
| r1,2 | min. | 1 | mm |

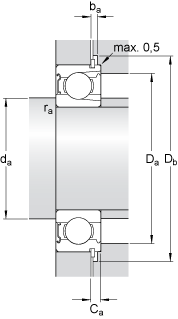

Size shoulder size
| da | min. | 35.6 | mm |
| da | max. | 40.2 | mm |
| Da | max. | 56.4 | mm |
| Db | min. | 69 | mm |
| ba | min. | 2.2 | mm |
| Ca | max. | 4.98 | mm |
| ra | max. | 1 | mm |
data calculation
| Basic dynamic load rating | C | 20.9 | kN | |
| Basic rated static load | C0 | 16.3 | kN | |
| Fatigue load limit | Pu | 0.695 | kN | |
| Reference speed | 20000 | r/min | ||
| Maximum speed | 12000 | r/min | ||
| coefficient | kr | 0.04 |
weight
| Bearing weight | 0.21 | kg |
配套产品
| 止动环 | SP 62 | |||
