size
| d | 1250 | mm | |
| D | 1500 | mm | |
| B | 80 | mm | |
| d1 | ≈ | 1341 | mm |
| D1 | ≈ | 1412 | mm |
| a | 437 | mm | |
| r1,2 | min. | 6 | mm |
| r3,4 | min. | 3 | mm |

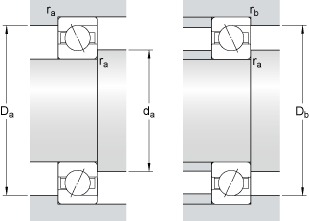

Size shoulder size
| da | min. | 1273 | mm |
| Da | max. | 1477 | mm |
| Db | max. | 1487 | mm |
| ra | max. | 5 | mm |
| rb | max. | 2.5 | mm |
data calculation
| Basic dynamic load rating | C | 806 | kN | |
| Basic rated static load | C0 | 2700 | kN | |
| Fatigue load limit | Pu | 36 | kN | |
| Reference speed | 280 | r/min | ||
| Maximum speed | 300 | r/min | ||
| coefficient | A | 67.3 | ||
| coefficient | kr | 0.078 | ||
| coefficient | e | 0.8 | ||
| 单个轴承和串联配置的轴承对 | ||||
| coefficient | X | 0.39 | ||
| coefficient | Y0 | 0.33 | ||
| coefficient | Y2 | 0.76 | ||
weight
| Bearing weight | 295 | kg |
