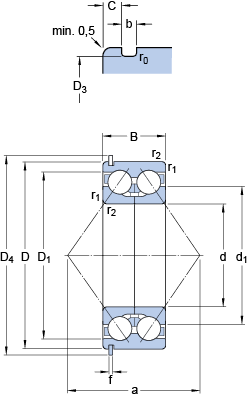

size
| d | 55 | mm | |
| D | 120 | mm | |
| B | 49.2 | mm | |
| d1 | ≈ | 81.55 | mm |
| D1 | ≈ | 105.43 | mm |
| D3 | 115.2 | mm | |
| D4 | 129.7 | mm | |
| C | 4.9 | mm | |
| b | 3.1 | mm | |
| f | 2.82 | mm | |
| r0 | max. | 0.6 | mm |
| r1,2 | min. | 2 | mm |
| a | 97 | mm |
Size shoulder size
| da | min. | 66 | mm |
| ra | max. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 95.6 | kN | |
| Basic rated static load | C0 | 83 | kN | |
| Fatigue load limit | Pu | 3.55 | kN | |
| Reference speed | 6000 | r/min | ||
| Maximum speed | 5300 | r/min | ||
| coefficient | kr | 0.095 | ||
| coefficient | e | 1.14 | ||
| coefficient | X | 0.57 | ||
| coefficient | Y0 | 0.52 | ||
| coefficient | Y1 | 0.55 | ||
| coefficient | Y2 | 0.93 |
weight
| Bearing weight | 2.55 | kg |
