size

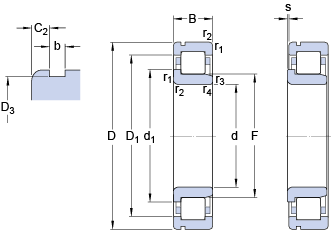

| d | 35 | mm | |
| D | 72 | mm | |
| B | 23 | mm | |
| d1 | ≈ | 48.1 | mm |
| D1 | ≈ | 60.2 | mm |
| F | 44 | mm | |
| r1,2 | min. | 1.1 | mm |
| r3,4 | min. | 0.6 | mm |
| s | max. | 2.8 | mm |
Dimensions
| D3 | 68.81 | mm | |
| C2 | 3.28 | mm | |
| b | 1.9 | mm |
Size shoulder size
| da | min. | 41.8 | mm |
| da | max. | 42.2 | mm |
| db | min. | 50 | mm |
| Da | max. | 65.1 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.6 | mm |
data calculation
| Basic dynamic load rating | C | 69.5 | kN | |
| Basic rated static load | C0 | 63 | kN | |
| Fatigue load limit | Pu | 8.15 | kN | |
| Reference speed | 11000 | r/min | ||
| Maximum speed | 12000 | r/min | ||
| coefficient | kr | 0.2 |
Calculation data
| 载荷计算： 极限值 | e | 0.3 | ||
| 载荷计算： coefficient | Y | 0.4 |
weight
| 轴承weight | 0.41 | kg |
