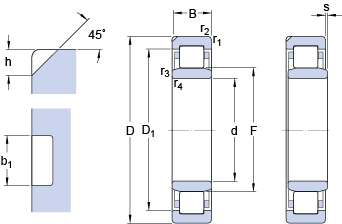

size
| d | 100 | mm | |
| D | 215 | mm | |
| B | 73 | mm | |
| D1 | ≈ | 181.95 | mm |
| F | 127.5 | mm | |
| r1,2 | min. | 3 | mm |
| r3,4 | min. | 3 | mm |
| s | max. | 5.9 | mm |
Dimensions
| b1 | 10.5 | mm | |
| h | 11.7 | mm |
Size shoulder size
| da | min. | 114 | mm |
| da | max. | 124 | mm |
| db | min. | 131 | mm |
| Da | max. | 199.6 | mm |
| ra | max. | 2.5 | mm |
| rb | max. | 2.5 | mm |
data calculation
| Basic dynamic load rating | C | 670 | kN | |
| Basic rated static load | C0 | 735 | kN | |
| Fatigue load limit | Pu | 85 | kN | |
| Reference speed | 3200 | r/min | ||
| Maximum speed | 6000 | r/min | ||
| coefficient | kr | 0.38 |
Calculation data
| 载荷计算： 极限值 | e | 0.3 | ||
| 载荷计算： coefficient | Y | 0.4 |
weight
| 轴承weight | 13 | kg |
