size

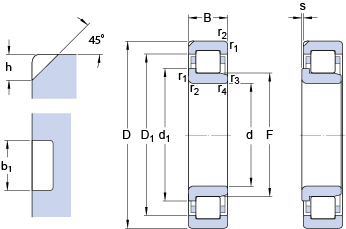

| d | 90 | mm | |
| D | 160 | mm | |
| B | 40 | mm | |
| d1 | ≈ | 114 | mm |
| D1 | ≈ | 139.25 | mm |
| F | 107 | mm | |
| r1,2 | min. | 2 | mm |
| r3,4 | min. | 2 | mm |
| s | max. | 2.6 | mm |
Dimensions
| b1 | 6.5 | mm | |
| h | 6.5 | mm |

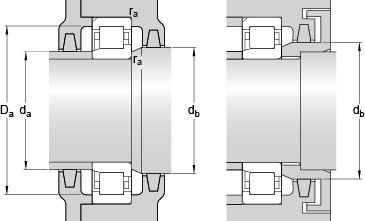

Size shoulder size
| da | min. | 101 | mm |
| da | max. | 104 | mm |
| db | min. | 117 | mm |
| Da | max. | 149 | mm |
| ra | max. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 280 | kN | |
| Basic rated static load | C0 | 315 | kN | |
| Fatigue load limit | Pu | 39 | kN | |
| Reference speed | 4500 | r/min | ||
| Maximum speed | 7500 | r/min | ||
| coefficient | kr | 0.3 |
Calculation data
| 载荷计算： 极限值 | e | 0.3 | ||
| 载荷计算： coefficient | Y | 0.4 |
weight
| 轴承weight | 3.59 | kg |
