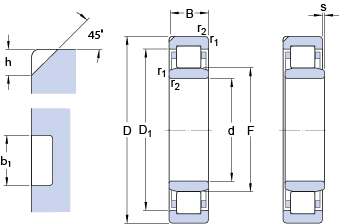

size
| d | 220 | mm | |
| D | 460 | mm | |
| B | 145 | mm | |
| D1 | ≈ | 384 | mm |
| F | 277 | mm | |
| r1,2 | min. | 5 | mm |
| s | max. | 10.4 | mm |
Dimensions
| b1 | 12.5 | mm | |
| h | 15 | mm |
Size shoulder size
| da | min. | 240 | mm |
| da | max. | 268 | mm |
| db | min. | 280 | mm |
| Da | max. | 440 | mm |
| ra | max. | 4 | mm |
data calculation
| Basic dynamic load rating | C | 2380 | kN | |
| Basic rated static load | C0 | 3450 | kN | |
| Fatigue load limit | Pu | 310 | kN | |
| Reference speed | 1300 | r/min | ||
| Maximum speed | 2200 | r/min | ||
| coefficient | kr | 0.25 |
Calculation data
| 载荷计算： 极限值 | e | 0.3 | ||
| 载荷计算： coefficient | Y | 0 |
weight
| 轴承weight | 124 | kg |
