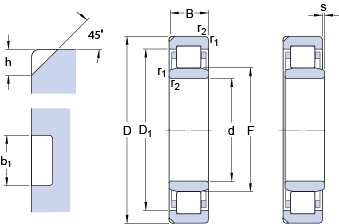

size
| d | 400 | mm | |
| D | 600 | mm | |
| B | 90 | mm | |
| D1 | ≈ | 527 | mm |
| F | 450 | mm | |
| r1,2 | min. | 5 | mm |
| s | max. | 14 | mm |
Dimensions
| b1 | 12.5 | mm | |
| h | 15 | mm |
Size shoulder size
| da | min. | 418 | mm |
| da | max. | 446 | mm |
| db | min. | 455 | mm |
| Da | max. | 582 | mm |
| ra | max. | 4 | mm |
data calculation
| Basic dynamic load rating | C | 1380 | kN | |
| Basic rated static load | C0 | 2320 | kN | |
| Fatigue load limit | Pu | 196 | kN | |
| Reference speed | 1100 | r/min | ||
| Maximum speed | 1500 | r/min | ||
| coefficient | kr | 0.15 |
Calculation data
| 载荷计算： 极限值 | e | 0.2 | ||
| 载荷计算： coefficient | Y | 0.6 |
weight
| 轴承weight | 90 | kg |
