size
| d | 60 | mm | |
| D | 130 | mm | |
| B | 46 | mm | |
| d1 | ≈ | 84.3 | mm |
| D1 | ≈ | 109.2 | mm |
| F | 77 | mm | |
| r1,2 | min. | 2.1 | mm |
| r3,4 | min. | 2.1 | mm |
| s | max. | 3.6 | mm |

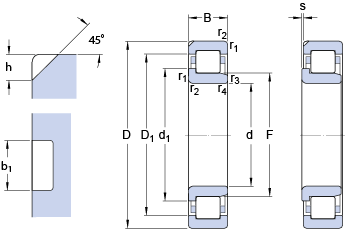

Dimensions
| b1 | 6.5 | mm | |
| h | 8.1 | mm |
Size shoulder size
| da | min. | 72 | mm |
| da | max. | 74 | mm |
| db | min. | 87 | mm |
| Da | max. | 118.1 | mm |
| ra | max. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 260 | kN | |
| Basic rated static load | C0 | 265 | kN | |
| Fatigue load limit | Pu | 34.5 | kN | |
| Reference speed | 5600 | r/min | ||
| Maximum speed | 10000 | r/min | ||
| coefficient | kr | 0.38 |
Calculation data
| 载荷计算： 极限值 | e | 0.3 | ||
| 载荷计算： coefficient | Y | 0.4 |
weight
| 轴承weight | 3.08 | kg |
