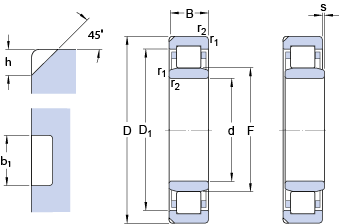

size
| d | 340 | mm | |
| D | 620 | mm | |
| B | 165 | mm | |
| D1 | ≈ | 515 | mm |
| F | 416 | mm | |
| r1,2 | min. | 6 | mm |
| s | max. | 8 | mm |
Dimensions
| b1 | 15.5 | mm | |
| h | 20 | mm |
Size shoulder size
| da | min. | 366 | mm |
| da | max. | 401 | mm |
| db | min. | 421 | mm |
| Da | max. | 594 | mm |
| ra | max. | 5 | mm |
data calculation
| Basic dynamic load rating | C | 2640 | kN | |
| Basic rated static load | C0 | 4500 | kN | |
| Fatigue load limit | Pu | 365 | kN | |
| Reference speed | 1000 | r/min | ||
| Maximum speed | 1200 | r/min | ||
| coefficient | kr | 0 |
Calculation data
| 载荷计算： 极限值 | e | 0.3 | ||
| 载荷计算： coefficient | Y | 0.4 |
weight
| 轴承weight | 226 | kg |
