设计
| 设计变型/特点 | BC4T.5/W33 | |||

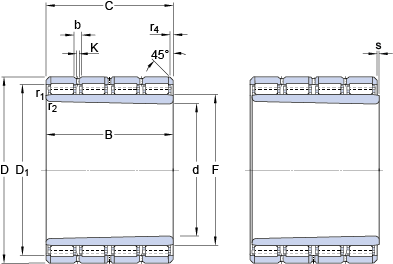

size
| d | 382.5 | mm | |
| D | 590 | mm | |
| B | 450 | mm | |
| C | 450 | mm | |
| D1 | ≈ | 524 | mm |
| F | 452.8 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 5 | mm |
| r3,4 | min. | 6.4 | mm |
圆锥孔，锥度 1:12
data calculation
| Basic dynamic load rating | C | 6930 | kN | |
| Basic rated static load | C0 | 16300 | kN | |
| Fatigue load limit | Pu | 1430 | kN | |
| coefficient | kr | 660 |
weight
| Bearing weight | 425 | kg |
