设计
| 设计变型/特点 | BC4.19/W33WI | |||

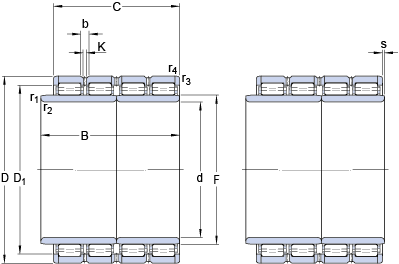

size
| d | 1300 | mm | |
| D | 1655 | mm | |
| B | 890 | mm | |
| C | 880 | mm | |
| D1 | ≈ | 1551.7 | mm |
| F | 1391 | mm | |
| b | 22.3 | mm | |
| K | 12 | mm | |
| r1,2 | min. | 7.5 | mm |
| r3,4 | min. | 7.5 | mm |
data calculation
| Basic dynamic load rating | C | 40200 | kN | |
| Basic rated static load | C0 | 122000 | kN | |
| Fatigue load limit | Pu | 7100 | kN | |
| coefficient | kr | 550 |
weight
| Bearing weight | 4800 | kg |
