设计
| 设计变型/特点 | BC4.4/WO | |||

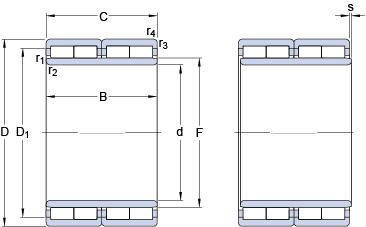

size
| d | 440 | mm | |
| D | 660 | mm | |
| B | 340 | mm | |
| C | 340 | mm | |
| D1 | ≈ | 579.8 | mm |
| F | 492 | mm | |
| r1,2 | min. | 6 | mm |
| r3,4 | min. | 6 | mm |
data calculation
| Basic dynamic load rating | C | 7210 | kN | |
| Basic rated static load | C0 | 13700 | kN | |
| Fatigue load limit | Pu | 1080 | kN | |
| coefficient | kr | 450 |
weight
| Bearing weight | 436 | kg |
