设计
| 设计变型/特点 | BC4.23/W33WI | |||

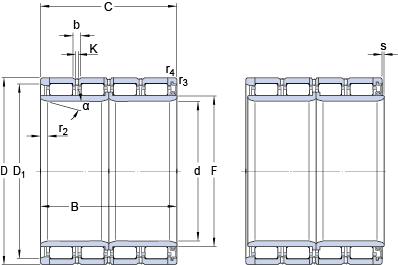

size
| d | 431.5 | mm | |
| D | 571.5 | mm | |
| B | 310 | mm | |
| C | 310 | mm | |
| D1 | ≈ | 530.6 | mm |
| F | 465 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 12 | mm |
| α | 20 | ° | |
| r3,4 | min. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 4460 | kN | |
| Basic rated static load | C0 | 10200 | kN | |
| Fatigue load limit | Pu | 880 | kN | |
| coefficient | kr | 400 |
weight
| Bearing weight | 200 | kg |
