设计
| 设计变型/特点 | BC4.7/W33WI | |||

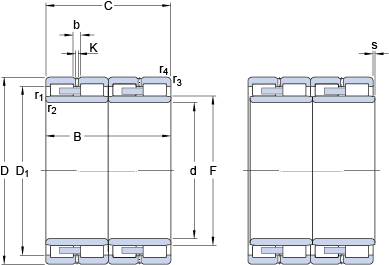

size
| d | 350 | mm | |
| D | 500 | mm | |
| B | 380 | mm | |
| C | 380 | mm | |
| D1 | ≈ | 452.8 | mm |
| F | 389 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 5 | mm |
| r3,4 | min. | 5 | mm |
data calculation
| Basic dynamic load rating | C | 5280 | kN | |
| Basic rated static load | C0 | 11400 | kN | |
| Fatigue load limit | Pu | 1040 | kN | |
| coefficient | kr | 630 |
weight
| Bearing weight | 236 | kg |
