设计
| 设计变型/特点 | BC4.8/W33WI | |||

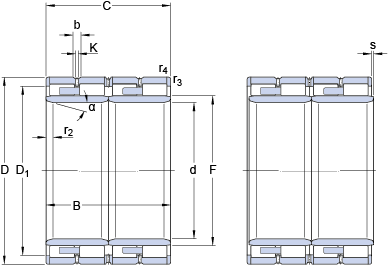

size
| d | 420 | mm | |
| D | 600 | mm | |
| B | 440 | mm | |
| C | 440 | mm | |
| D1 | ≈ | 539.3 | mm |
| F | 470 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 8 | mm |
| α | 20 | ° | |
| r3,4 | min. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 7210 | kN | |
| Basic rated static load | C0 | 17600 | kN | |
| Fatigue load limit | Pu | 1460 | kN | |
| coefficient | kr | 660 |
weight
| Bearing weight | 400 | kg |
