设计
| 设计变型/特点 | BC4.6/W33 | |||

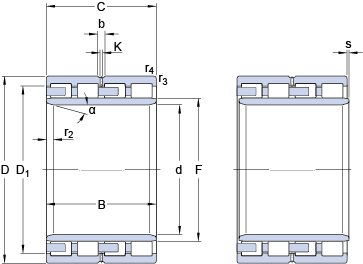

size
| d | 460 | mm | |
| D | 680 | mm | |
| B | 400 | mm | |
| C | 400 | mm | |
| D1 | ≈ | 617.5 | mm |
| F | 518 | mm | |
| b | 24 | mm | |
| K | 8 | mm | |
| r1,2 | min. | 13 | mm |
| α | 20 | ° | |
| r3,4 | min. | 3 | mm |
data calculation
| Basic dynamic load rating | C | 8090 | kN | |
| Basic rated static load | C0 | 17300 | kN | |
| Fatigue load limit | Pu | 1340 | kN | |
| coefficient | kr | 520 |
weight
| Bearing weight | 640 | kg |
