设计
| 设计变型/特点 | BC4T.1/W33 | |||

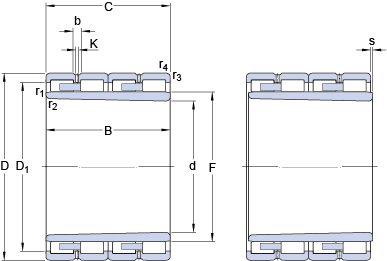

size
| d | 412.335 | mm | |
| D | 650 | mm | |
| B | 488 | mm | |
| C | 488 | mm | |
| D1 | ≈ | 581 | mm |
| F | 494.5 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 4 | mm |
| r3,4 | min. | 4 | mm |
圆锥孔，锥度 1:12
data calculation
| Basic dynamic load rating | C | 8420 | kN | |
| Basic rated static load | C0 | 19000 | kN | |
| Fatigue load limit | Pu | 1500 | kN | |
| coefficient | kr | 630 |
weight
| Bearing weight | 575 | kg |
