设计
| 设计变型/特点 | BC4.7/WO | |||

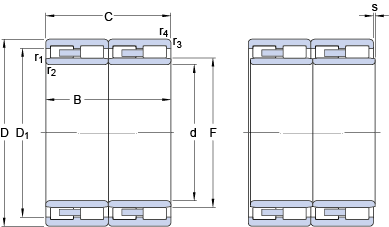

size
| d | 165.1 | mm | |
| D | 225.45 | mm | |
| B | 168.3 | mm | |
| C | 168.3 | mm | |
| D1 | ≈ | 205 | mm |
| F | 181 | mm | |
| r1,2 | min. | 1.5 | mm |
| r3,4 | min. | 1.5 | mm |
Dimensions
| s | 1.2 | mm |
data calculation
| Basic dynamic load rating | C | 1100 | kN | |
| Basic rated static load | C0 | 2240 | kN | |
| Fatigue load limit | Pu | 240 | kN | |
| coefficient | kr | 0 |
weight
| Bearing weight | 19.8 | kg |
