设计
| 设计变型/特点 | BC4T.3/W20 | |||

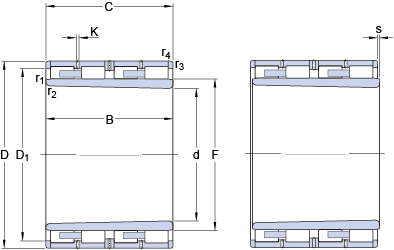

size
| d | 356.67 | mm | |
| D | 550 | mm | |
| B | 400 | mm | |
| C | 400 | mm | |
| D1 | ≈ | 482.6 | mm |
| F | 423.7 | mm | |
| K | 12 | mm | |
| r1,2 | min. | 3.2 | mm |
| r3,4 | min. | 4 | mm |
| β | 45 | ° |
圆锥孔，锥度 1:12
data calculation
| Basic dynamic load rating | C | 5280 | kN | |
| Basic rated static load | C0 | 15000 | kN | |
| Fatigue load limit | Pu | 1290 | kN | |
| coefficient | kr | 700 |
weight
| Bearing weight | 335 | kg |
