设计
| 设计变型/特点 | BC4.7/W33WI | |||

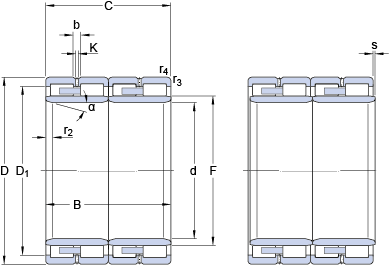

size
| d | 510 | mm | |
| D | 730 | mm | |
| B | 520 | mm | |
| C | 520 | mm | |
| D1 | ≈ | 665.3 | mm |
| F | 569 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 17.5 | mm |
| α | 20 | ° | |
| r3,4 | min. | 6 | mm |
data calculation
| Basic dynamic load rating | C | 10200 | kN | |
| Basic rated static load | C0 | 22000 | kN | |
| Fatigue load limit | Pu | 1660 | kN | |
| coefficient | kr | 560 |
weight
| Bearing weight | 750 | kg |
