设计
| 设计变型/特点 | BC4.1/W | |||

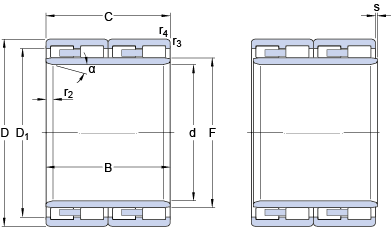

size
| d | 380 | mm | |
| D | 560 | mm | |
| B | 325 | mm | |
| C | 325 | mm | |
| D1 | ≈ | 508 | mm |
| F | 428 | mm | |
| r1,2 | min. | 13 | mm |
| α | 20 | ° | |
| r3,4 | min. | 5 | mm |
data calculation
| Basic dynamic load rating | C | 5230 | kN | |
| Basic rated static load | C0 | 10600 | kN | |
| Fatigue load limit | Pu | 930 | kN | |
| coefficient | kr | 0 |
weight
| Bearing weight | 270 | kg |
