设计
| 设计变型/特点 | BC4T.5/W33 | |||

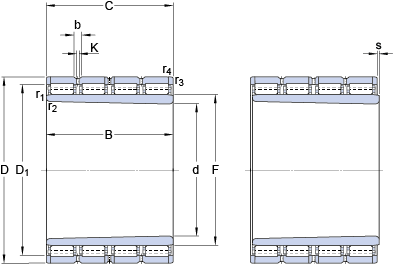

size
| d | 485 | mm | |
| D | 740 | mm | |
| B | 540 | mm | |
| C | 540 | mm | |
| D1 | ≈ | 659 | mm |
| F | 572.3 | mm | |
| b | 22.3 | mm | |
| K | 12 | mm | |
| r1,2 | min. | 5 | mm |
| r3,4 | min. | 5 | mm |
圆锥孔，锥度 1:12
data calculation
| Basic dynamic load rating | C | 11000 | kN | |
| Basic rated static load | C0 | 28500 | kN | |
| Fatigue load limit | Pu | 2160 | kN | |
| coefficient | kr | 730 |
weight
| Bearing weight | 830 | kg |
