设计
| 设计变型/特点 | BC4T.3/W33 | |||

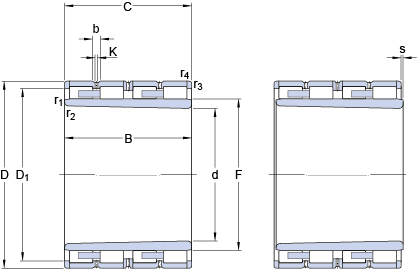

size
| d | 320 | mm | |
| D | 480 | mm | |
| B | 350 | mm | |
| C | 350 | mm | |
| D1 | ≈ | 431 | mm |
| F | 378 | mm | |
| b | 13.9 | mm | |
| K | 7.5 | mm | |
| r1,2 | min. | 1.5 | mm |
| r3,4 | min. | 1.5 | mm |
圆锥孔，锥度 1:12
data calculation
| Basic dynamic load rating | C | 4570 | kN | |
| Basic rated static load | C0 | 11000 | kN | |
| Fatigue load limit | Pu | 1020 | kN | |
| coefficient | kr | 650 |
weight
| Bearing weight | 215 | kg |
