设计
| 设计变型/特点 | BC4.10/W33WI | |||

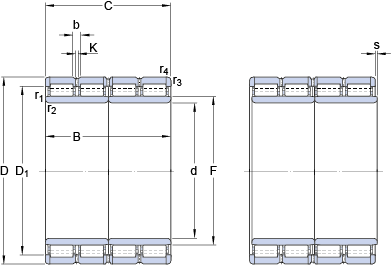

size
| d | 480 | mm | |
| D | 680 | mm | |
| B | 420 | mm | |
| C | 420 | mm | |
| D1 | ≈ | 620.7 | mm |
| F | 528 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 12 | mm |
| r3,4 | min. | 3 | mm |
data calculation
| Basic dynamic load rating | C | 9130 | kN | |
| Basic rated static load | C0 | 19300 | kN | |
| Fatigue load limit | Pu | 1500 | kN | |
| coefficient | kr | 570 |
weight
| Bearing weight | 496 | kg |
