设计
| 设计变型/特点 | BC4.20/W33GWI | |||

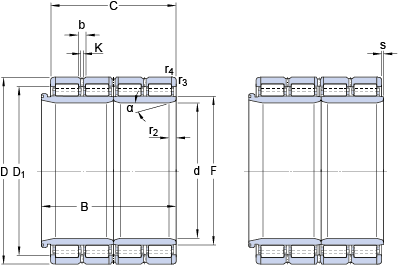

size
| d | 460 | mm | |
| D | 650 | mm | |
| B | 460 | mm | |
| C | 424 | mm | |
| D1 | ≈ | 594 | mm |
| F | 510 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 11.5 | mm |
| α | 20 | ° | |
| r3,4 | min. | 3 | mm |
data calculation
| Basic dynamic load rating | C | 7810 | kN | |
| Basic rated static load | C0 | 18300 | kN | |
| Fatigue load limit | Pu | 1530 | kN | |
| coefficient | kr | 530 |
weight
| Bearing weight | 490 | kg |
