设计
| 设计变型/特点 | BC4.1/WO | |||

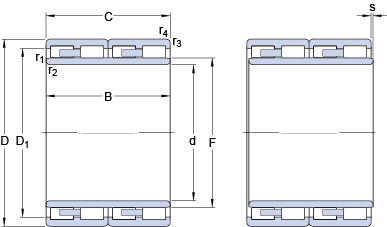

size
| d | 200 | mm | |
| D | 270 | mm | |
| B | 170 | mm | |
| C | 170 | mm | |
| D1 | ≈ | 247.6 | mm |
| F | 222 | mm | |
| r1,2 | min. | 2.1 | mm |
| r3,4 | min. | 2.1 | mm |
Dimensions
| s | 3 | mm |
data calculation
| Basic dynamic load rating | C | 1250 | kN | |
| Basic rated static load | C0 | 2700 | kN | |
| Fatigue load limit | Pu | 275 | kN | |
| coefficient | kr | 0 |
weight
| Bearing weight | 28.4 | kg |
