设计
| 设计变型/特点 | BC4.1/W33GWI | |||

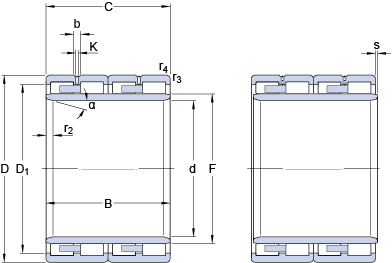

size
| d | 350 | mm | |
| D | 520 | mm | |
| B | 300 | mm | |
| C | 300 | mm | |
| D1 | ≈ | 467.95 | mm |
| F | 401 | mm | |
| b | 11.6 | mm | |
| K | 6 | mm | |
| r1,2 | min. | 10 | mm |
| α | 20 | ° | |
| r3,4 | min. | 5 | mm |
data calculation
| Basic dynamic load rating | C | 4680 | kN | |
| Basic rated static load | C0 | 9000 | kN | |
| Fatigue load limit | Pu | 800 | kN | |
| coefficient | kr | 0 |
weight
| Bearing weight | 220 | kg |
