设计
| 设计变型/特点 | BC4.14/W33WI | |||

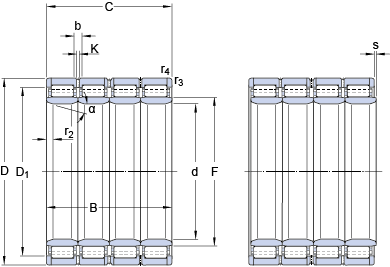

size
| d | 1040 | mm | |
| D | 1440 | mm | |
| B | 1000 | mm | |
| C | 1000 | mm | |
| D1 | ≈ | 1327.7 | mm |
| F | 1133 | mm | |
| b | 22.3 | mm | |
| K | 12 | mm | |
| r1,2 | min. | 12 | mm |
| α | 20 | ° | |
| r3,4 | min. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 38000 | kN | |
| Basic rated static load | C0 | 93000 | kN | |
| Fatigue load limit | Pu | 5700 | kN | |
| coefficient | kr | 600 |
weight
| Bearing weight | 5100 | kg |
