设计
| 设计变型/特点 | BC4.10/W33WI | |||

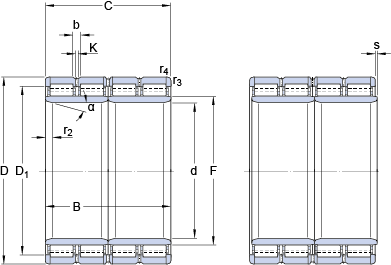

size
| d | 571.1 | mm | |
| D | 812.97 | mm | |
| B | 594 | mm | |
| C | 594 | mm | |
| D1 | ≈ | 729 | mm |
| F | 636 | mm | |
| b | 22.3 | mm | |
| K | 12 | mm | |
| r1,2 | min. | 14 | mm |
| α | 20 | ° | |
| r3,4 | min. | 5 | mm |
data calculation
| Basic dynamic load rating | C | 13400 | kN | |
| Basic rated static load | C0 | 33500 | kN | |
| Fatigue load limit | Pu | 2550 | kN | |
| coefficient | kr | 730 |
weight
| Bearing weight | 1000 | kg |
