设计
| 设计变型/特点 | BC4.10/W33WI | |||

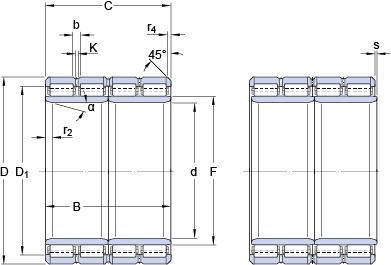

size
| d | 820 | mm | |
| D | 1130 | mm | |
| B | 800 | mm | |
| C | 800 | mm | |
| D1 | ≈ | 1031 | mm |
| F | 903 | mm | |
| b | 35 | mm | |
| K | 16 | mm | |
| r1,2 | min. | 20 | mm |
| α | 20 | ° | |
| r3,4 | min. | 8.5 | mm |
data calculation
| Basic dynamic load rating | C | 24200 | kN | |
| Basic rated static load | C0 | 68000 | kN | |
| Fatigue load limit | Pu | 4400 | kN | |
| coefficient | kr | 700 |
weight
| Bearing weight | 2540 | kg |
