设计
| 设计变型/特点 | BC4.18/W33GWI | |||

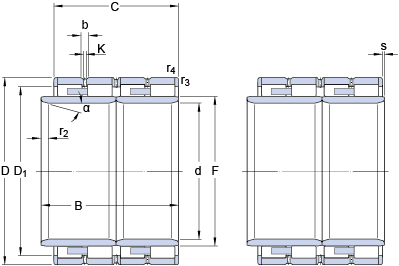

size
| d | 410 | mm | |
| D | 560 | mm | |
| B | 420 | mm | |
| C | 400 | mm | |
| D1 | ≈ | 514.3 | mm |
| F | 450 | mm | |
| b | 16.7 | mm | |
| K | 9 | mm | |
| r1,2 | min. | 23 | mm |
| α | 20 | ° | |
| r3,4 | min. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 5940 | kN | |
| Basic rated static load | C0 | 14600 | kN | |
| Fatigue load limit | Pu | 1250 | kN | |
| coefficient | kr | 610 |
weight
| Bearing weight | 275 | kg |
