size
| d | 710 | mm | |
| D | 950 | mm | |
| B | 140 | mm | |
| d1 | ≈ | 790 | mm |
| D1 | ≈ | 876 | mm |
| E | 896 | mm | |
| s | max. | 10 | mm |
| r1,2 | min. | 6 | mm |

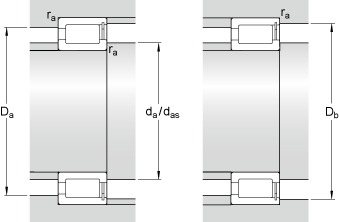

Size shoulder size
| da | min. | 733 | mm |
| das | 761 | mm | |
| Da | max. | 927 | mm |
| Db | max. | 927 | mm |
| ra | max. | 5 | mm |
data calculation
| Basic dynamic load rating | C | 4290 | kN | |
| Basic rated static load | C0 | 10000 | kN | |
| Fatigue load limit | Pu | 695 | kN | |
| Reference speed | 240 | r/min | ||
| Maximum speed | 300 | r/min | ||
| coefficient | kr | 0.2 | ||
| coefficient | e | 0.3 | ||
| coefficient | Y | 0.4 |
weight
| Bearing weight | 275 | kg |
