size
| d | 120 | mm | |
| D | 165 | mm | |
| B | 27 | mm | |
| d1 | ≈ | 136 | mm |
| D1 | ≈ | 149 | mm |
| E | 154.3 | mm | |
| s | max. | 1.3 | mm |
| r1,2 | min. | 1.1 | mm |
| r3,4 | min. | 1 | mm |

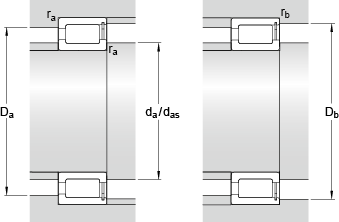

Size shoulder size
| da | min. | 126 | mm |
| das | 133 | mm | |
| Da | max. | 159 | mm |
| Db | max. | 159 | mm |
| ra | max. | 1 | mm |
| rb | max. | 1 | mm |
data calculation
| Basic dynamic load rating | C | 172 | kN | |
| Basic rated static load | C0 | 290 | kN | |
| Fatigue load limit | Pu | 34.5 | kN | |
| Reference speed | 4300 | r/min | ||
| Maximum speed | 4300 | r/min | ||
| coefficient | kr | 0.2 | ||
| coefficient | e | 0.3 | ||
| coefficient | Y | 0.4 |
weight
| Bearing weight | 1.73 | kg |
