size
| d | 360 | mm | |
| D | 540 | mm | |
| B | 243 | mm | |
| d1 | ≈ | 412 | mm |
| D1 | ≈ | 486 | mm |
| b1 | 9.4 | mm | |
| K | 5 | mm | |
| s | max. | 11 | mm |
| r1,2 | min. | 5 | mm |
| r3,4 | min. | 5 | mm |

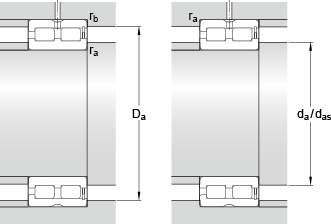

Size shoulder size
| da | min. | 383 | mm |
| das | 402 | mm | |
| Da | max. | 519 | mm |
| ra | max. | 4 | mm |
| rb | max. | 4 | mm |
data calculation
| Basic dynamic load rating | C | 4180 | kN | |
| Basic rated static load | C0 | 8650 | kN | |
| Fatigue load limit | Pu | 735 | kN | |
| Reference speed | 500 | r/min | ||
| Maximum speed | 630 | r/min | ||
| coefficient | kr | 0.5 |
weight
| 轴承weight | 195 | kg |
