size
| d | 190 | mm | |
| D | 260 | mm | |
| T | 102 | mm | |
| d1 | ≈ | 227.49 | mm |
| C | 80 | mm | |
| r1,2 | min. | 2.5 | mm |
| r5 | min. | 0.6 | mm |
| a | 121.776 | mm |

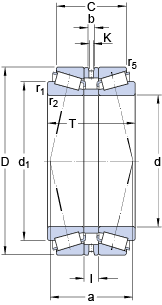

Dimensions
| l | 12 | mm | |
| b | 6.5 | mm | |
| K | 5 | mm |
Size shoulder size
| db | min. | 204 | mm |
| Db | min. | 251 | mm |
| Cb | min. | 204 | mm |
| ra | max. | 2.5 | mm |
Abutment dimensions
| rc | max. | 0.6 | mm |
data calculation
| Basic dynamic load rating | C | 760 | kN | |
| Basic rated static load | C0 | 1530 | kN | |
| Fatigue load limit | Pu | 143 | kN | |
| Reference speed | 1400 | r/min | ||
| Maximum speed | 2200 | r/min | ||
| 载荷计算： 极限值 | e | 0.48 | ||
| 载荷计算： coefficient | Y1 | 1.4 | ||
| 载荷计算： coefficient | Y2 | 2.1 | ||
| 载荷计算： coefficient | Y0 | 1.4 |
weight
| 轴承对weight | 15 | kg |
