设计
| 设计变型/特点 | TQOE/GWI | |||

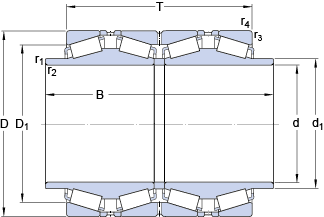

size
| d | 685.8 | mm | |
| D | 876.3 | mm | |
| B | 434.975 | mm | |
| T | 355.6 | mm | |
| r1,2 | min. | 3.3 | mm |
| r3,4 | min. | 1.5 | mm |
Dimensions
| d1 | ≈ | 730 | mm |
| D1 | ≈ | 803 | mm |
data calculation
| Basic dynamic load rating | C | 7210 | kN | |
| Basic rated static load | C0 | 22000 | kN | |
| Fatigue load limit | Pu | 1500 | kN | |
| 比较径向额定载荷 | CF | 1900 | kN | |
| 比较径向的基本额定载荷 | CFa | 393 | kN | |
| 保持架系数 | K | 1.4 | ||
| coefficient | e | 0.43 | ||
| coefficient | Y1 | 1.6 | ||
| coefficient | Y2 | 2.3 | ||
| coefficient | Y0 | 1.6 |
weight
| Bearing weight | 580 | kg |
