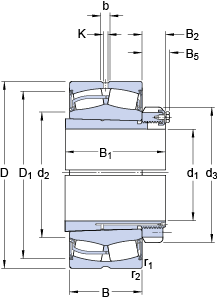

size
| d1 | 200 | mm | |
| D | 340 | mm | |
| B | 90 | mm | |
| d2 | ≈ | 245 | mm |
| d3 | 260 | mm | |
| D1 | ≈ | 314 | mm |
| B1 | 126 | mm | |
| B2 | 30 | mm | |
| B5 | 41 | mm | |
| b | 13.9 | mm | |
| K | 7.5 | mm | |
| r1,2 | min. | 3 | mm |
Size shoulder size
| da | max. | 245 | mm |
| db | min. | 231 | mm |
| Da | max. | 327 | mm |
| Ba | min. | 10 | mm |
| ra | max. | 2.5 | mm |
data calculation
| Basic dynamic load rating | C | 1262 | kN | |
| Basic rated static load | C0 | 1860 | kN | |
| Fatigue load limit | Pu | 163 | kN | |
| Maximum speed | 430 | r/min | ||
| coefficient | e | 0.22 | ||
| coefficient | Y1 | 3 | ||
| coefficient | Y2 | 4.6 | ||
| coefficient | Y0 | 2.8 |
weight
| 包含退卸套的轴承 | 37.9 | kg |
