size
| d | 180 | mm | |
| D | 250 | mm | |
| H | 42 | mm | |
| d1 | ≈ | 234 | mm |
| D1 | ≈ | 208 | mm |
| B | 26 | mm | |
| B1 | 36.9 | mm | |
| C | 22 | mm | |
| s | 97 | mm | |
| r1,2 | min. | 1.5 | mm |

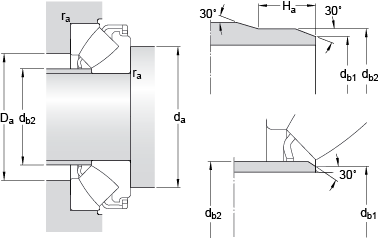

Size shoulder size
| da | min. | 210 | mm |
| db1 | max. | 187 | mm |
| db2 | max. | 187 | mm |
| Ha | min. | 14 | mm |
| Da | max. | 226 | mm |
| ra | max. | 1.5 | mm |
data calculation
| Basic dynamic load rating | C | 495 | kN | |
| Basic rated static load | C0 | 2040 | kN | |
| Fatigue load limit | Pu | 212 | kN | |
| Reference speed | 1600 | r/min | ||
| Maximum speed | 2600 | r/min | ||
| 最小轴向载荷系数 | A | 0.4 |
weight
| Bearing weight | 5.8 | kg |
