size
| d | 300 | mm | |
| D | 480 | mm | |
| H | 109 | mm | |
| d1 | ≈ | 434 | mm |
| D1 | ≈ | 372 | mm |
| B | 70 | mm | |
| B1 | 98.9 | mm | |
| C | 51 | mm | |
| s | 168 | mm | |
| r1,2 | min. | 5 | mm |

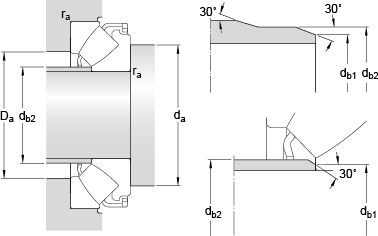

Size shoulder size
| da | min. | 385 | mm |
| db1 | max. | 313 | mm |
| db2 | max. | 329 | mm |
| Da | max. | 423 | mm |
| ra | max. | 4 | mm |
data calculation
| Basic dynamic load rating | C | 3100 | kN | |
| Basic rated static load | C0 | 10600 | kN | |
| Fatigue load limit | Pu | 930 | kN | |
| Reference speed | 750 | r/min | ||
| Maximum speed | 1200 | r/min | ||
| 最小轴向载荷系数 | A | 11 |
weight
| Bearing weight | 75 | kg |
