size
| d | 200 | mm | |
| D | 280 | mm | |
| H | 48 | mm | |
| d1 | ≈ | 260 | mm |
| D1 | ≈ | 233 | mm |
| B | 30 | mm | |
| B1 | 43.4 | mm | |
| C | 24 | mm | |
| s | 108 | mm | |
| r1,2 | min. | 2 | mm |

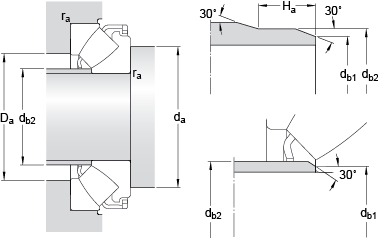

Size shoulder size
| da | min. | 235 | mm |
| db1 | max. | 206 | mm |
| db2 | max. | 207 | mm |
| Ha | min. | 17 | mm |
| Da | max. | 253 | mm |
| ra | max. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 656 | kN | |
| Basic rated static load | C0 | 2650 | kN | |
| Fatigue load limit | Pu | 285 | kN | |
| Reference speed | 1400 | r/min | ||
| Maximum speed | 2200 | r/min | ||
| 最小轴向载荷系数 | A | 0.67 |
weight
| Bearing weight | 9.3 | kg |
